This page displays information about the licenses currently in use.

The area General provides basic information about the licenses.

On the one hand, there is information about the owner of the license, such as Name, Street, City and Serial number.

Furthermore, the currently used Host name is listed, to which the application has connected, and at License library which library was loaded by d.ecs storage manager for connection.

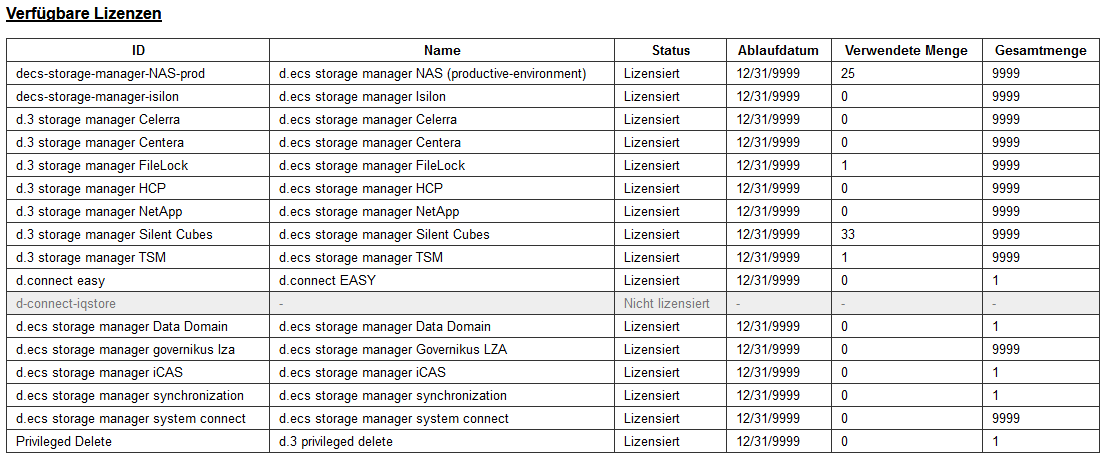

The area Available licenses lists all licenses which are available for d.ecs storage manager. A range of detailed information is displayed for each of these licenses.

The unique ID and, if available, the display name entered in the license is listed for each license.

The Status of a license is either Licensed or Not licensed - unlicensed entries are indicated by a colored highlighting.

For licensed entries, the expiry date and the quantities used and available are listed.

In case of full or over licensing an entry is marked by an error color. If the booking of a license reaches a usage of 90% of the total quantity, an entry is marked by a warning color.

The area License overview lists all currently executed license bookings. Several values per booking can also be viewed here.

ID, System name and Volume allow an entry to be assigned to a configured module or volume.

Size [bytes] indicates the amount of space currently booked for an entry, while Number of files gives information about how many files are responsible for that storage space.

An entry contains a value for Expiry date if a license could not be booked.
