Web-Interface

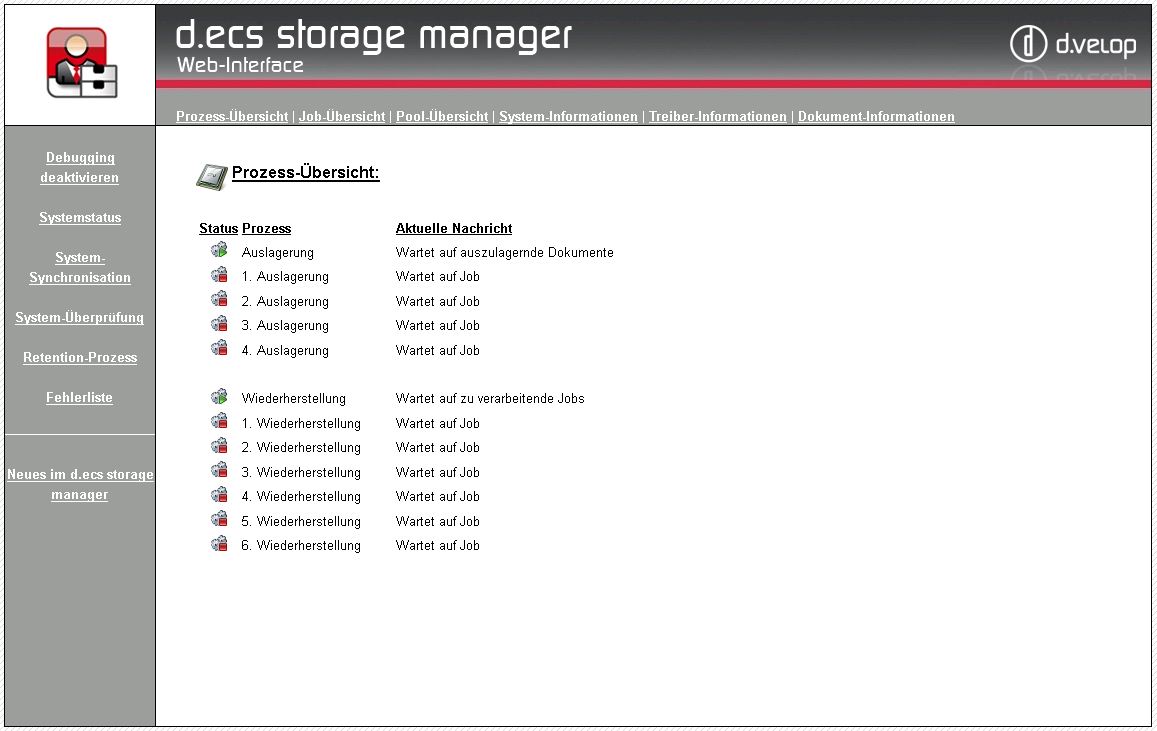

d.ecs storage manager offers a web interface for the monitoring of the d.ecs storage manager. The individual processes (storage/retrieval) can be enabled or disabled.

Furthermore, you can obtain information on the currently installed storage drivers. For troubleshooting purposes the debug logging can be enabled during runtime.


The links at the left and upper border of the web-interface allow to retrieve and display certain information as well as apply respective configuration settings for the system check or synchronization.

Open the web interface

Optionally, open the web-interface from the server hosting d.ecs storage manager via the address

http://localhost:[Port]/

must be called. The port is defined in the d.ecs storage manager configuration (see Tab: HTTP / API Interface).

Note

If the web interface is opened from another client, a login dialog is displayed. In this case, the user name is "Admin" and the password is equivalent to the web password configured in the d.ecs storage manager administration.

For a smooth operation of the web interface, you must enable Javascript (active scripting) in the web-browser.
