d.ecs storage manager iCAS

The d.ecs storage manager iCAS module allows d.ecs storage manager to store documents on an iCAS system by iTernity.

Warning

For a proper processing, an iTernity iCAS system of version 3.7 SP4 is required.

The user to be used to access the iCAS system, should have the right ADVIRW to be able to execute all API calls executed by d.ecs storage manager without any problems.

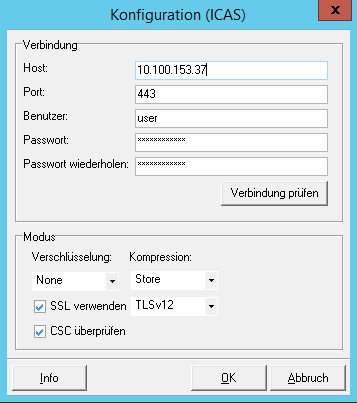

Configuration

Host: Hostname or IP of the iTernity-system.

Port: Port of the iTernity-system.

User: Users eligible to sign in to the iTernity-system who has the respective rights for the secondary storage or reading of the documents.

Password: Password of the user.

Compression: Optionally, select the type of compression for the documents here.

Encryption: Optionally, select the type of encryption for the documents here.

Use SSL: This allows you to enable the encryption for the data transmission between d.ecs storage manager and the secondary storage system. This also changes the default port to 443. Please check, if your storage system uses the same port. Furthermore, the SSL/TLS version to be used can be defined. This depends on the IIS (Internet Information Service) version of the iCAS system used.

Check CSC: If this parameter is enabled, then it is checked on uploading a file to the iTernity system, if the file exists on the iTernity system.
