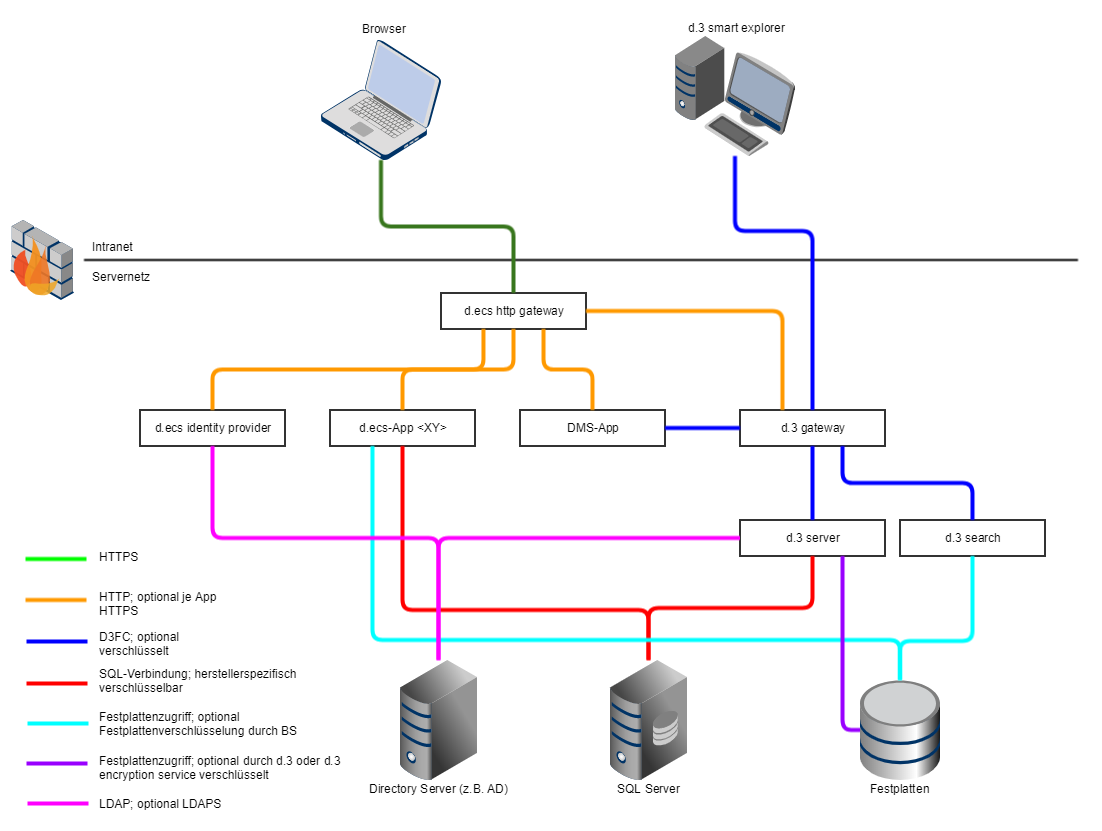

Representation of the data stream of d.3 core components

If the information requires an encryption within the server network, an increased security can only be achieved, if organizational measures are combined with enabling it.

Moreover, SQL Servers and d.3 search must be analyzed separately. For both, the data storage/harddisk can be encrypted, however, the data are still transparently accessible. Critical data should thus not be stored here. For d.3 search, a special option exists so that only the words are stored here without any context.

The d.velop d.3 client components communicate mainly via d.3 gateway with the server network. If the information requires an encryption within the server network, an increased security can only be achieved, if organizational measures are combined with enabling it. For example, the communication between d.3 gateway and d.3 client core components could activate Net-Crypt encryption via public.key file. Please refer to the corresponding manual for further information.

The following data flow diagram outlines the core product of the d.velop d.3 client components, d.3 smart explorer and its networking in the entire d.3ecm system.
